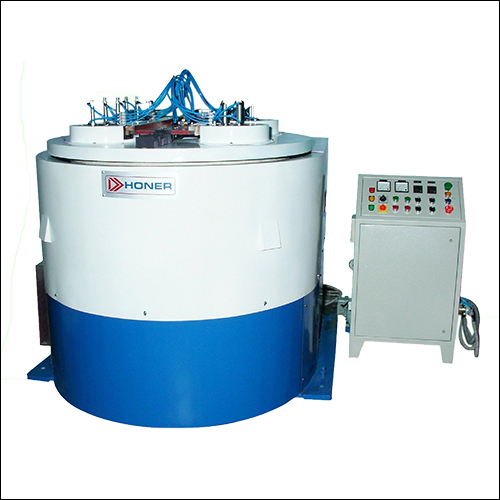

Valve Body Lapping Machine

Get a Price/Quote

MOQ : 1 Unit

Valve Body Lapping Machine Specification

Drive
Direct Drive Motor

Power Rating
1.5 kW

Cooling System
Integrated Coolant Recirculation

Accuracy
2 Microns

Noise Level
75 dB

Machine Type
Industrial Lapping

Operating Temperature
5C - 45C

Motor Power
1.5 kW

Frequency
50 Hz

Connectivity Options
External USB Data Port

Frame Type
Rigid Welded Steel

Production Capacity
6-10 Valve Bodies per hour

Voltage
415 V, 3 Phase

Lubricating System
Automatic Oil Injection

Features
Digital Display, Emergency Stop, Variable Speed, Safety Enclosure

Control System
PLC Touch Panel

Model No
VBLM-20355

Product Type
Valve Body Lapping Machine

Technology
Advanced Mechanical Lapping

Power Source
Electric

Operating Type
Automatic

Power
1.5 kW

Pressure
0.2 - 0.5 MPa (2 - 5 Bar), adjustable

Surface Treatment
Powder Coated

Dimension (L*W*H)
1050 x 800 x 1350 mm

Weight (kg)
380 kg

Color
Industrial Grey

Usage & Applications
Automotive, Oil & Gas, Industrial Valve Factories

Power Consumption
1.65 kW

Tool Changing Time
<3 min

Max Valve Body Diameter
200 mm

Lapping Plate Material
Alloy Cast Iron / Composite

Work Holder Table Size
450 mm dia.

Standard Accessories
Lapping Plate, Work Holding Jigs, Coolant System, Tool Kit

Spindle Speed Range
60 - 300 rpm (variable)

Min Valve Body Diameter
25 mm

Compliance
CE, ISO 9001 Certified

Operators Required
1

Safety Features
Overload Protection, Guarded Moving Parts, Emergency Stop

Dust Management
Fitted Dust Extraction Ports

Working Speed
60-300 rpm (variable)

Valve Body Lapping Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
2 Units Per Month

Delivery Time
2 Week

Main Export Market(s)
Australia, Eastern Europe, Western Europe, Central America, Middle East, South America, Asia, North America, Africa

About Valve Body Lapping Machine

We sincere intentions to expand our business all across the globe, our reliable organization is successfully engaged in providing the best quality array of Valve Body Lapping Machine. This machine is manufactured at our highly advanced premises with the use of top quality components as per international quality standards. Featured with advanced motor of high power, the provided machine is able to lap 4 or 6 valves at a time with high speed. Interested clients can avail the offered Valve Body Lapping Machine at economic prices from us.

Key points:

High speed operations
Consumes less power
Exceptional throughput
Needs less maintenance

Valve body lapping machine

Application:-

D-HONER DHL-1, D-HONER DHL-2, 4 & 6 Valve Lapping Machines are the first of their kind in India. This machine will provide major Technological Break through in Valve Lapping operation of Internal Combustion Engines. Presently the Valve Lapping Operation is done manually and has following major draw-backs:

Low Rate of Production.
High Cost of Operation.
Requirement of Skilled Labour.
Inconsistency in Lapping.

D-HONER-DHL machine besides mechanizing the operation will overcome all the draw backs that are associated with Manual Lapping. Due to simultaneously Lapping of 4 or 6 valves at a time at optimum lapping speed, production rates as high as 5 to 6 times can be achieved with remarkable degree of Consistency. The operational simplicity of the machine enables use of unskilled Labour. All these factors result in considerable reduction in operational cost.

FEATURES:- Drive: Specially designed heavy-duty compact Geared Motor of ample Capacity with an output speed that is optimum for valve lapping operation. The mechanism of the machine is fairly simple and hence requires practically no maintenance.

Spindles:- These are robustly designed and mode of toughened alloy steel, precision round and supported in heavy-duty roller bearings. The centre distance of the spindles can be adjusted simply by turning the knob and sliding The spindle block. Once the desire centre distance is achieved the spindle block can be locked in position by turning the knob in the reverse direction. The pneumatically operated vacuum cup that dives the valve and pneumatic cylinder giving directly of up & down in process of lapping. Pneumatic pressure regulator give adjustable load each valve require machines with fixed centre distance spindles can also be supplied.

Four models are available viz: AUTOLAP-1, Two spindle AUTOLAP-2, Four spindle AUTOLAP-4, Six spindle AUTOLAP-6.

ADVANTAGES:-

Economical
Labour Saving
High rate production
High operation efficiency
Less down time of engine
Precision
Longer life of Valves
Consistency in Lapping and High quality of work
Skilled Labours are not required to operate the machine

OPTIONAL EXTRAS:-

Machine Lamp.
Digital Timer for Auto Stop.
Device for intermittent lifting of up & down in process of lapping.
Vacuum Testing Device.
Fixture for quick positioning of cylinder heads.
Table for Horizontal and Vertical Single spindle movement.

Optimized Precision and Safety

Engineered with a digital display, variable speed control, and a safety enclosure, this machine guarantees reliable precision with accuracy up to 2 microns. Safety is prioritized with overload protection, emergency stop functionality, and guarded moving parts, keeping operators secure at all times during operation.

Efficient Operation for Industrial Needs

With a production capacity of 6-10 valve bodies per hour and fast tool-changing (under three minutes), the VBLM-20355 suits intensive manufacturing environments. Integrated coolant and dust extraction systems ensure a clean workspace, while PLC touch panel controls streamline operations for effortless programming and data management.

FAQs of Valve Body Lapping Machine:

Q: How does the variable spindle speed benefit the valve body lapping process?

A: The variable spindle speed range of 60300 rpm allows operators to adjust the machine for different valve body materials and sizes, resulting in optimized surface finish, enhanced accuracy, and minimal material waste during the lapping process.

Q: What are the safety features included in the VBLM-20355 Valve Body Lapping Machine?

A: This lapping machine is equipped with multiple safety features such as overload protection, an emergency stop button, fully guarded moving parts, and a safety enclosure to ensure safe operation and protect personnel from potential hazards.

Q: When should the lapping plate be changed, and how long does it take?

A: The lapping plate should be replaced when wear impacts lapping quality or according to preventative maintenance schedules. Tool changing is straightforward and can be completed in under three minutes due to the user-friendly design and supplied tool kit.

Q: Where is the VBLM-20355 commonly used?

A: The VBLM-20355 is ideally suited for automotive manufacturers, oil & gas facilities, and industrial valve factories, where precise lapping and finishing of valve bodies are critical for operational reliability and product quality.

Q: What process ensures dust and coolant management during operation?

A: Integrated dust extraction ports and a coolant recirculation system continuously manage and remove debris and excess coolant, maintaining a clean working environment and protecting components from contamination.

Q: How does using this machine benefit my production line?

A: With automatic control, rapid tool change, high accuracy, and robust safety and dust management, the VBLM-20355 increases throughput, reduces human error, and promotes a safe, efficient, and standardized production line, fully compliant with CE and ISO 9001 requirements.

Q: Is the machine compatible with automated control systems and modern connectivity options?

A: Yes, the VBLM-20355 features a PLC touch panel for advanced automatic operation and includes an external USB data port for easy integration with modern data management systems.
